NCARB PDD Exam Syllabus Topics:
| Topic | Details |
|---|---|
| Topic 1 |
|
| Topic 2 |
|
| Topic 3 |
|
| Topic 4 |
|
| Topic 5 |
|
NEW QUESTION # 21
A construction detail for a window sill shows metal flashing terminating behind the exterior cladding. Which principle is being demonstrated?
- A. Water management
- B. Thermal bridging
- C. Air barrier continuity
- D. Structural redundancy
Answer: A
Explanation:
Proper flashing is critical for water shedding and moisture protection. Flashing behind the cladding allows water to drain outward-addressing ARE Objective 3.3: Evaluate construction details for moisture control.
NEW QUESTION # 22
Refer to the exhibit.
The construction method shown in the detail should be used to prevent cracking in which of the following situations?
- A. Structural steel frame buildings with plaster ceilings
- B. Concrete frame buildings with drywall suspended ceilings
- C. Concrete flat slab buildings with exposed slab ceilings
- D. Exposed structural steel frame with no partitions to the structure
Answer: B
Explanation:

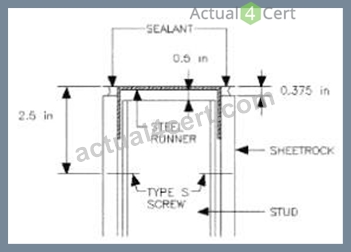

The detail shows a steel runner with sheetrock and screws, typical for drywall suspended ceiling assemblies.
This construction method is commonly used in concrete frame buildings with drywall ceilings suspended below the structural slab.
It helps prevent cracking by accommodating building movement and separating finish materials from structural movement.
Structural steel frame buildings with plaster ceilings typically have different finish and framing details.
Concrete flat slabs with exposed ceilings have no finish requiring such assemblies.
Exposed steel frames without partitions don't need drywall framing.
Reference:
NCARB ARE 5.0 Review Manual, Materials and Assemblies chapter
Interior finishes and drywall system installation guides (Gypsum Association)
NEW QUESTION # 23
Which of the following best explains the function of Division 01 in the specifications?
- A. Details bidding and contract forms
- B. Identifies drawing scales and symbols
- C. Establishes general administrative requirements
- D. Describes specific materials and installation
Answer: C
Explanation:
Division 01 governs administrative procedures across all trades-submittals, project meetings, temporary utilities, etc. It sets the framework for other divisions. Objective 2.1 addresses the structure and function of specifications.
NEW QUESTION # 24
The architect has completed 60% of the construction documents. The owner wants to establish the guaranteed maximum price (GMP) at this point before 100% of the construction documents are complete. Several flooring finish items are still undetermined.
What should be included in the project manual to make sure the contractor has a cost to cover all finishes?
- A. Allowance of $30/sq. yd. for floor finishes
- B. Schedule of flooring unit prices to be completed by the contractor
- C. Alternate to change broadloom carpet to carpet tile
- D. Contingency of 10% added to the overall construction cost
Answer: A
Explanation:
When a GMP (Guaranteed Maximum Price) is established before the design is 100% complete and specific materials are not yet chosen, the correct approach is to specify allowances in the project manual.
An allowance is a fixed monetary amount for a specific scope item (e.g., flooring finishes) that allows the contractor to carry a cost in the bid/GMP until the actual product is selected. This ensures the GMP covers the item without delaying pricing.
A). Contingency - Is for unforeseen conditions, not specific unselected finishes.
B). Schedule of unit prices - Typically used for variable-quantity work, not for unknown product selection.
D). Alternate - Provides an option for substitution, but does not guarantee a base cost in the GMP.
PDD Reference: ARE 5.0 PDD "Project Manual and Specifications-Allowances, Alternates, and Unit Prices," AIA A201 ยง3.8, CSI Division 01-General Requirements.
NEW QUESTION # 25

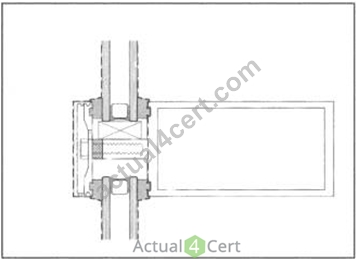

The design of a 10-story residential building features a curtain wall system on all four elevations. Due to diurnal temperature swings in the area, the curtain wall will need a thermal break to prevent the transfer of heat into the building.

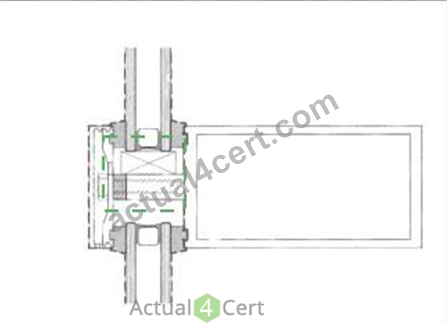

Click on the thermal break in the pressure-plate mullion detail.
Answer:
Explanation:
Explanation:

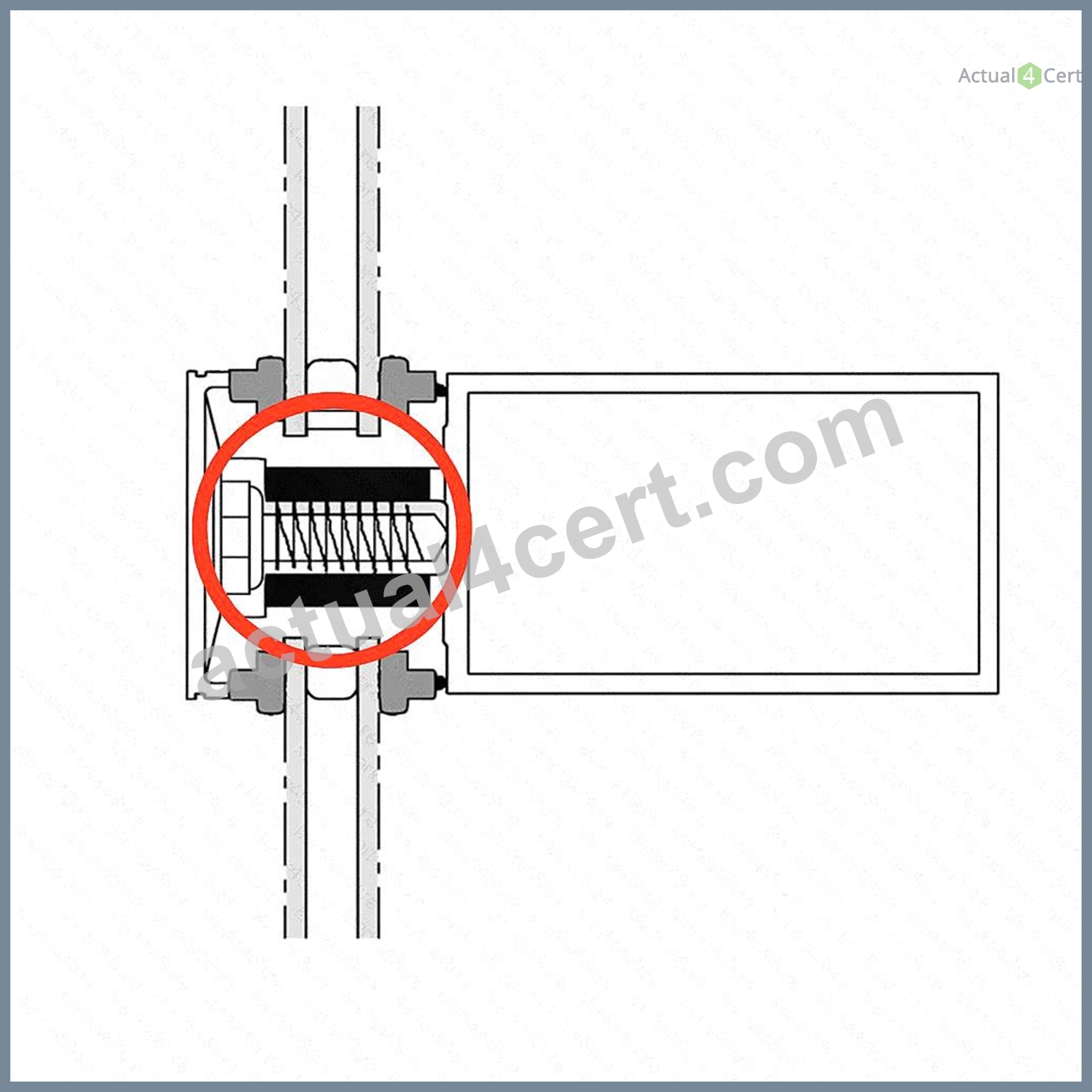

In the provided pressure-plate curtain wall mullion detail, the thermal break is typically located between the interior and exterior aluminum components of the mullion to prevent conductive heat transfer.
# Thermal Break Location:
Look for the black or dark shaded strip in the middle of the mullion where the two separate metal parts meet - this strip is a non-metallic insulating material (usually polyamide or other plastic) that interrupts the metal-to-metal connection between interior and exterior.
In this image, the thermal break is located:
## In the vertical center of the mullion, between the inner and outer aluminum extrusions, where a black isolator or separator is shown (just above and below the screw/fastener).
Clicking on this narrow dark band (thermal isolator) between the inner and outer components of the curtain wall mullion would be the correct hotspot answer.
NEW QUESTION # 26
Specifications and details for repointing deteriorated masonry joints in historic soft-brick buildings should result in which one of the following?
- A. A bond between the existing masonry and the new mortar that is stronger than the brick
- B. The duplication of original mortar strength
- C. Deeper joint profiles
- D. An increased mortar strength over the original mortar
Answer: B
Explanation:
Understanding the Problem
This question is about historic masonry restoration - specifically, repointing deteriorated mortar joints in soft-brick buildings.
Historic bricks, especially those made before the early 20th century, are often much softer and more porous than modern high-fired bricks. The mortar originally used was also softer, usually lime-based, which allowed for thermal movement, moisture permeability, and protection of the brick units.
Why the Correct Answer is "Duplication of Original Mortar Strength"
* Best practice in preservation (as outlined in the Secretary of the Interior's Standards for the Treatment of Historic Properties) is to match the original mortar in strength, composition, permeability, and appearance.
* A mortar stronger than the original can cause the softer brick to crack or spall under thermal or moisture stresses, because the brick will end up being the weaker link and take the damage.
* Duplication ensures that the new mortar works compatibly with the old masonry system - allowing for similar vapor transmission and structural flexibility.
Why the Other Options Are Incorrect:
* B. Increased mortar strength over the original mortar - This is harmful in historic soft-brick construction. Stronger cement-based mortars can trap moisture in the brick, leading to freeze-thaw damage and spalling.
* C. A bond stronger than the brick - This would cause the brick to fail first when stress occurs, which is undesirable in preservation work.
* D. Deeper joint profiles - Deeply raking out joints unnecessarily can damage surrounding brick edges and change the visual proportions; repointing depth should only be enough to remove deteriorated mortar (typically 2-2.5 times the joint width).
NCARB ARE 5.0 PDD Study Guide References:
* Content Area: Integration of Building Materials & Systems - Historic Preservation Techniques
* Key Resources:
* The Secretary of the Interior's Standards for Rehabilitation & Illustrated Guidelines for Rehabilitating Historic Buildings
* National Park Service Preservation Brief 2: "Repointing Mortar Joints in Historic Masonry Buildings"
* Building Construction Illustrated - Masonry Restoration
* Key Preservation Principle: "New mortar should match the historic mortar in composition, strength, and vapor permeability."
NEW QUESTION # 27
For the same moment, a glue-laminated beam would require a section modulus of what proportion relative to a sawn timber beam? (Assume F# of the glue-laminated beam is 2,400 psi and F# of the sawn lumber beam equals 1,200 psi.)
- A. The same
- B. 0
- C. 3/4
- D. 1/2
Answer: D
Explanation:
Comprehensive Detailed Explanation with all NCARB ARE 5.0 Project Development and Documentation (PDD) Study Guide References:

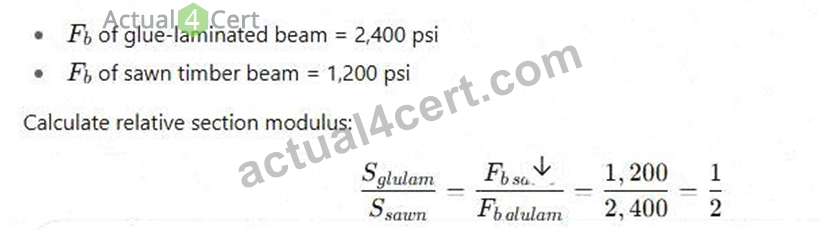

The question is about the relative section modulus (S) required for a glue-laminated beam vs. a sawn timber beam to resist the same bending moment. The formula relating bending stress (Fb), moment (M), and section modulus (S) is:
For the same bending moment M, the section modulus is inversely proportional to the allowable bending stress
Therefore, the glue-laminated beam requires half the section modulus compared to the sawn timber beam.
Supporting Reference:
NCARB ARE 5.0 Review Manual, Structural Systems chapter
Basic bending stress and beam design equations from structural design texts
NEW QUESTION # 28
Where is the proper place to put a vapor barrier in a cold climate?
- A. On the exterior between the framing and the sheathing
- B. In the cavity of the framing space
- C. On the exterior between the metal siding and the sheathing
- D. On the interior between the gypsum wallboard and the framing
Answer: D
Explanation:
In cold climates, the vapor drive is from the warm interior to the cold exterior during winter. The vapor retarder/barrier belongs on the warm-in-winter side of the assembly-i.e., behind the interior gypsum, before the framing/insulation-to prevent interior moisture from reaching cold layers where it could condense.
PDD references: Psychrometrics & vapor drive; vapor retarder placement (ASHRAE; IBC/IECC guidance; ARE 5.0 PDD-Thermal & Moisture Protection).
NEW QUESTION # 29
A family-owned apple farm in the Upper Midwest is taking advantage of a change in the local zoning code that added a new Agri-Tourism class in the existing farm zone. This allows the Owner to build a new facility on their existing site. The building will be open to the public and include a brewery, distillery, tap room, and market. The architect is ready to submit the drawings to the Owner for the 50% construction documents review.
To accommodate a compressed construction schedule, the Owner will be utilizing a design-build process. The Contractor has submitted the Pre-Engineered Metal Building (PEMB) shop drawings to the Architect for review, due to the lead time on this critical path item. Once construction begins, farming operations must be able to continue uninterrupted.
Key project information includes:
* Brewing and distilling will operate year-round.
* Brewery will initially include four fermenting tanks. Owner has requested space for at least two additional tanks. Potential expansion will be based on future sales.
* Distillery will produce 16% alcohol, which is classified as a flammable liquid. Fire separations are required.
* Tap Room is designed with seating for 300 people, not including exterior patio seating. It will have views to the working orchards and the historic buildings on site.
* Tap Room is scheduled to be open from August through November. Owner would like options to extend operating dates based on popularity.
* The Market area will feature local farm products and is not conditioned.
* Entire building will be fully sprinklered.
* Selected building materials are low-maintenance, as requested by the Owner, for durability and to reflect the nature of a working farm.
* Mechanical and electrical systems will be hung from the building structure. These loads are included in PEMB shop drawings.
* Public water and sewer is not available at the Project Site.
* Occupancy sensors are included to reduce utility costs and achieve energy conservation requirements.
The following resources are available for your reference:
* Architectural Drawings, including plans, elevations, sections, and schedules
* Consultant Drawings, including structural, HVAC, power distribution, and plumbing
* PEMB Shop Drawings
* Design and Construction Schedule
* Specification Excerpts, showing relevant spec sections
* IBC and ADA Excerpts, showing relevant code and accessibility sections
* After reviewing the documents, the architect discovers a coordination issue in the corridor.
Refer to the exhibit.
Which hardware set should be specified for door number 27?
- A. Hardware set 4.0
- B. Hardware set 2.0
- C. Hardware set 3.0
- D. Hardware set 1.0
Answer: C
Explanation:

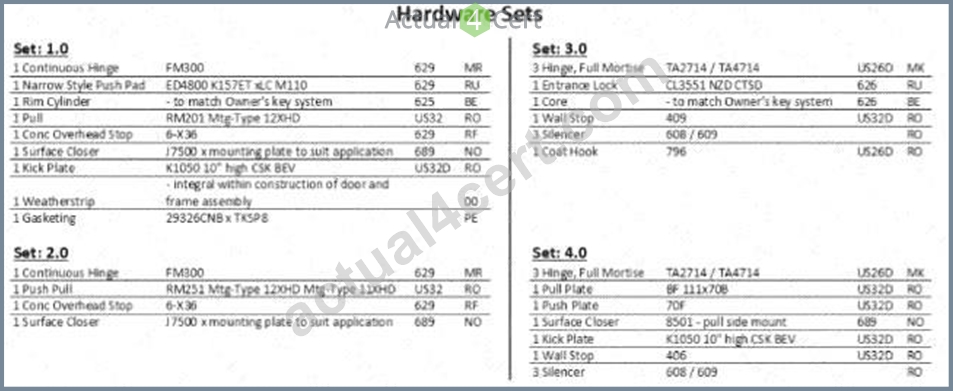

Hardware Set 3.0 includes: three full-mortise hinges, an entrance/privacy lock, matching core, wall stop, silencers, and a coat hook. That combination is the typical specification for a single-occupant toilet room or similar private room opening off a corridor-privacy latch (not an exit device), door control, and a coat hook inside. Sets 1.0 and 4.0 are push/pull or exit-device packages (for egress/assembly or non-latching doors), and Set 2.0 is a basic push-pull set without a latch-none of which meet the corridor toilet-room function.
PDD refs: Division 08 door hardware scheduling; coordination of door sets with room function and code egress/privacy requirements.
NEW QUESTION # 30
Refer to the exhibit.

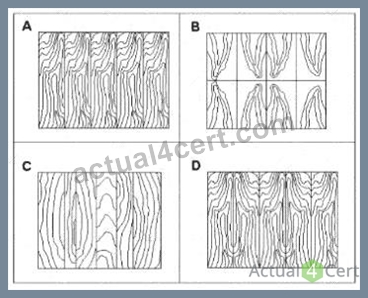

Which of the following examples of wood paneling depicts the method of "slip matching" between adjacent wood veneers?
- A. B
- B. A
- C. D
- D. C
Answer: B
Explanation:
Understanding Slip Matching in Wood Veneer
When wood veneer is sliced from a log, each sheet (or "leaf") has a repeating grain pattern. How those sheets are arranged side-by-side on a panel is called the matching method.
Slip Matching:
* Consecutive leaves are laid side-by-side without flipping or reversing them.
* This creates a repeating grain pattern that flows consistently across the panel.
* The result is a uniform, continuous grain with no "mirror image" effect - the cathedrals and figure in the grain run in the same direction from sheet to sheet.
* Slip matching often produces a striped effect if the grain is straight, or a flowing, consistent repeat if the grain is more figured.
Identifying Slip Matching in the Exhibit:
* Option A shows consecutive veneer leaves with the grain pattern running in the same orientation across the panel - no mirroring, only repetition. This is classic slip match.
* Option B shows book matching - where every other leaf is flipped horizontally to create a mirrored grain pattern.
* Option C appears to be random matching - leaves are placed without grain sequence alignment.
* Option D shows reverse slip matching - similar to slip match but alternating leaves are reversed end- to-end.
NCARB ARE 5.0 PDD Study Guide References:
* Content Area: Integration of Materials & Finishes - Millwork and Casework Veneer Matching Methods
* Sources:
* Architectural Woodwork Standards (AWS) - Section on Veneer Matching
* Architectural Graphic Standards - Finish Carpentry and Veneer Matching
* Building Construction Illustrated (Ching) - Interior Finish Carpentry Key Point:
Slip matching keeps all veneer leaves in the same orientation, producing a consistent flow of the grain without the mirrored effect seen in book matching.
NEW QUESTION # 31
Which document is the most appropriate location for specifying the finish material for casework?
- A. General Conditions
- B. Construction Drawings
- C. Outline Specifications
- D. Project Manual - Division 06
Answer: D
Explanation:
Division 06 (Wood, Plastics, and Composites) of the Project Manual contains detailed specifications for finish carpentry and casework materials. This aligns with ARE Objective 2.1: Evaluate project manual sections for technical accuracy.
NEW QUESTION # 32
In winter conditions, when the outdoor air is below freezing and the indoor humidity is maintained at 40 percent relative humidity for 24 hours a day, ice forms on the exterior surface of the stone facing.
Which of the following elements is missing from the building wall section?
- A. Air space
- B. Wall insulation
- C. Vapor barrier
- D. Rain screen
Answer: C
Explanation:
With outdoor below freezing and indoor RH ~40% continuously, interior vapor will migrate outward. If a proper interior-side vapor barrier/retarder is missing, moisture moves through the wall and can condense and freeze at the cold exterior stone, forming visible ice. Insulation, air spaces, or rain screens help heat/moisture management, but the symptom (ice due to vapor diffusion) points specifically to the lack of an interior vapor barrier in a cold-climate assembly.
PDD references: Moisture control & vapor retarder strategy in cold climates; condensation diagnostics (ASHRAE Fundamentals; ARE 5.0 PDD-Envelope moisture control).
NEW QUESTION # 33
For which of the following reasons is sheet piling used? (Check the three that apply)
- A. An excessive slope on the sides of the excavation would be required.
- B. The soil surrounding an excavation site will not support itself during or after the digging.
- C. Raked shoring should be created.
- D. The excavation adjoins a property line and the adjacent property cannot be disturbed.
- E. A pile cap needs support.
- F. A grade beam needs support.
Answer: A,B,D
Explanation:
Sheet piling is a type of earth retention system used in excavations to prevent soil collapse. Reasons include:
D). When the natural soil slope is too steep to remain stable, sheet piling acts as a vertical barrier.
E). When soil cannot support itself during excavation, sheet piles provide lateral support.
F). When excavation is adjacent to a property line or existing structure and adjacent soil must not be disturbed.
Options A (grade beam support), B (raked shoring), and C (pile cap support) are not typical or primary uses of sheet piling.
Reference:
NCARB ARE 5.0 Review Manual, Site Design and Construction chapter
Geotechnical engineering and excavation support best practices
NEW QUESTION # 34
Which of the following is most appropriate to coordinate ceiling-mounted HVAC diffusers?
- A. Structural framing plan
- B. Reflected ceiling plan
- C. Roof plan
- D. Floor finish plan
Answer: B
Explanation:
Reflected ceiling plans (RCPs) show locations of diffusers, lighting, ceiling grids, etc. Critical for coordinating mechanical with electrical and architectural elements. Related to Objective 3.1: Coordination of disciplines.
NEW QUESTION # 35

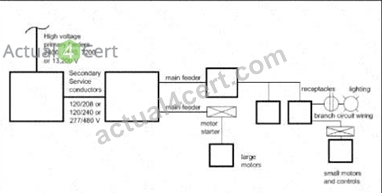

The single-line diagram for the electrical distribution system shown is for a multi-family project.
Click in the box on the single-line diagram where the transformer is located.
Answer:
Explanation:
Explanation:

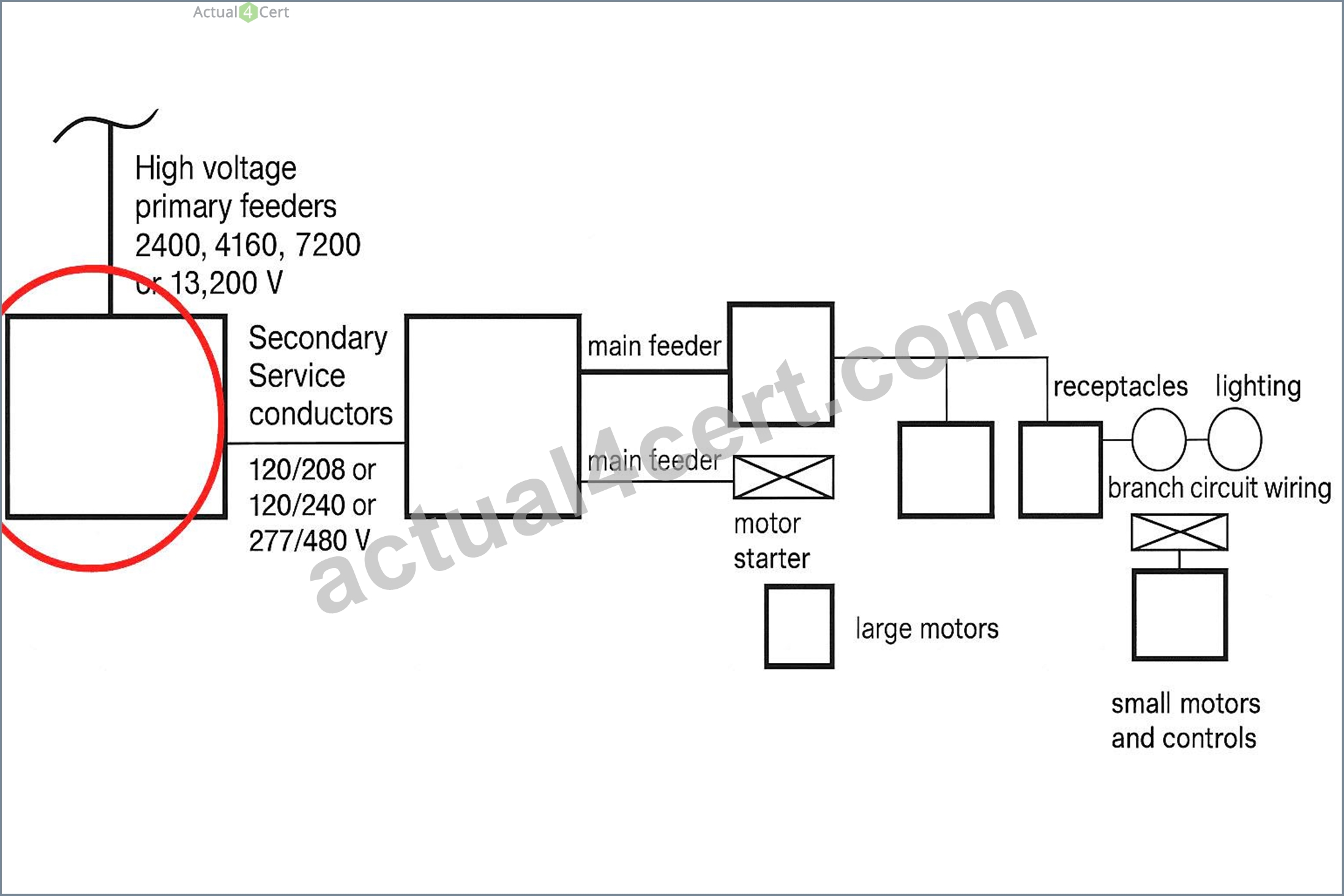

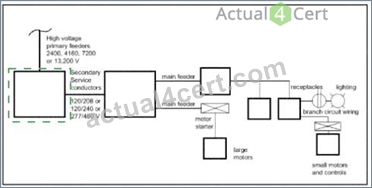

The transformer is located in the first large box after the high-voltage primary feeders and before the secondary service conductors on the left side of the diagram.
Step-by-Step Reasoning
1. Understanding the diagram flow:
* The leftmost symbol represents high-voltage primary feeders from the utility (2,400V, 4,160V, 7,200 V, or 13,200V).
* Immediately after that, there is a large box labeled "Secondary Service conductors" with standard building service voltages (120/208, 120/240, 277/480 V).
* To get from primary (medium/high) voltage to these usable secondary voltages, you must step down the voltage - and that is done by a transformer.
2. Transformer location in electrical distribution:
* Transformers are always placed between the incoming primary service and the secondary distribution system in building diagrams.
* In this drawing, the transformer is symbolized by the first large square/rectangular box after the high- voltage primary feeders.
3. Why not any other box?
* The following boxes and lines after this first step are feeders, panels, and motor starters - they operate at secondary voltage.
* Only the transformer connects the utility high-voltage system to the building's lower-voltage system.
NCARB ARE 5.0 PDD References:
* Content Area: Electrical Systems - Service Entrance and Distribution
* Source References:
* MEEB (Mechanical and Electrical Equipment for Buildings) - Chapter on Transformers & Electrical Service
* NEC (National Electrical Code) Article 450 - Transformer Installation and Use
* Architectural Graphic Standards - Single-Line Diagrams for Electrical Distribution Key Point:
In building electrical distribution, the transformer is always between the high-voltage primary service and the secondary service conductors to step down voltage to a usable level for building loads.
NEW QUESTION # 36
An architect is designing a school building that features a flat roof with a low parapet wall in a wet climate region. The client wants to minimize maintenance requirements and focus on keeping water from the walls.
What parapet coping detail would be most appropriate for the architect to select for this project?
- A. B
- B. C
- C. A
Answer: B
Explanation:
Understanding the Problem
The question addresses parapet coping design in a wet climate with a focus on:
* Minimizing maintenance
* Preventing water from running down the face of the wall
Parapet copings protect the top of the parapet wall from water penetration and are designed to shed water away from the wall below.
Analysis of the Options
A). Flat Coping
* A flat coping (Option A) has no slope and allows water to pool on the surface.
* This pooling increases the likelihood of infiltration and material deterioration over time.
* In wet climates, this is poor practice because standing water leads to freeze-thaw damage, staining, and faster degradation.
* Maintenance needs are higher.
B). Single-Slope Coping
* This coping (Option B) has a slope toward one side, which improves drainage.
* However, if sloped toward the inside of the parapet, it increases roof drainage load and risk of water penetration at roof/wall junction.
* If sloped toward the outside, water can run down the wall face, which the client specifically wants to avoid.
* This design might also stain exterior wall finishes over time.
C). Double-Slope (Pitched) Coping with Drip Edges
* This coping (Option C) is pitched toward both sides, with drip edges to break water runoff before it reaches the wall face.
* Water is shed away efficiently, and drip grooves prevent capillary action that would pull water back toward the wall.
* This is best practice in wet climates and greatly reduces maintenance by preventing staining and wall saturation.
* Recommended by NRCA (National Roofing Contractors Association) and referenced in Architectural Graphic Standards for parapet detailing.
NCARB ARE 5.0 PDD Reference:
* Content Area: Integration of Building Materials & Systems - Building Envelope Detailing
* Source Materials:
* Architectural Graphic Standards - Parapet Cap/Coping Details
* Building Construction Illustrated by Francis D.K. Ching - Water Management & Flashing
* NRCA Roofing Manual - Best Practices for Roof Edge & Parapet Design
* Key Principle: Parapet copings in wet climates should always slope to shed water away, incorporate overhangs with drips, and prevent water from cascading down the building face.
NEW QUESTION # 37
Which of the following documents defines the responsibilities and duties of the contractor during construction?
- A. G702
- B. A201
- C. B101
- D. A101
Answer: B
Explanation:
A201 is the General Conditions of the Contract for Construction and outlines duties, rights, and responsibilities of the contractor. This includes site supervision, safety, and conformance with documents.
ARE Handbook Objective 1.4 focuses on interpreting contract documents.
NEW QUESTION # 38
......
Updated NCARB Study Guide PDD Dumps Questions: https://www.actual4cert.com/PDD-real-questions.html
Dumps Questions [2026] Pass for PDD Exam: https://drive.google.com/open?id=1ZuGnOPbLmY8DHiDkdrMhv6015h9ZWjX8
